Terex RL4 6 kW Light Tower

$1,600

Scroll down for more options

Call for Details Text

Delivery Available

Local & nationwide

Warranty Options

1 & 2 year available

Description

Terex RL4 6 kW Light Tower

Lamps Metal halide 4 x 1,000 W
Lumens 108,000 Available power output 1.8 kw
Generator Brushless 60 Hz, 6.0 kW,
Engine Kohler Diesel 10.7 hp Receptacles One GFI duplex 20 A / 120 V
Fuel capacity 45 gal (170 L)
Total weight no fuel 1,453 lbs (659 kg)
Call or Text anytime(801) 880-8800

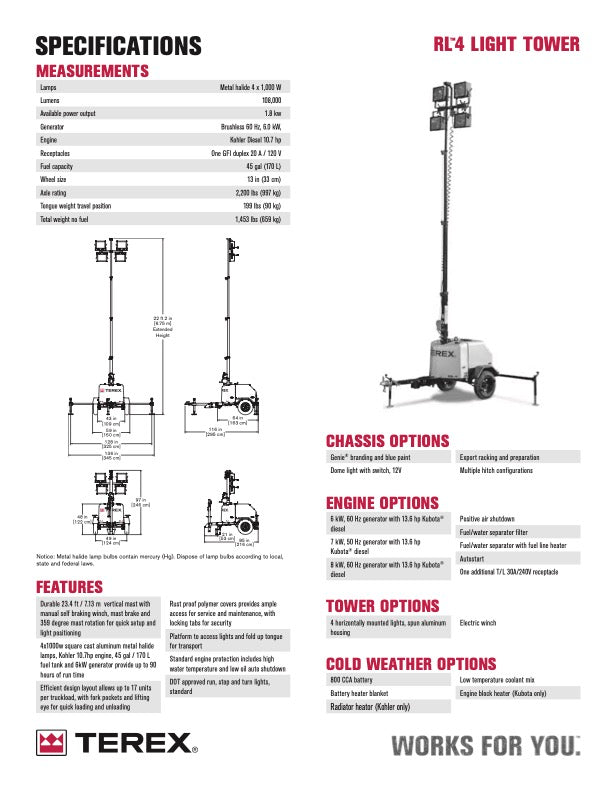

Specs & manuals

A towable diesel light tower with four 1,000 W metal-halide lights on a 23 ft vertical mast and a 6 kW generator. It runs about 4 days on a 45 gal tank.

Output: 6 kW, 60 Hz generator; 4 x 1,000 W metal halide lights (4,000 W total)
Engine: Kohler KDW1003 diesel, 10.7 hp @ 1,800 rpm (Kubota 16.9 hp on other configurations)
Fuel capacity: 45 gal
Run time: 110 hrs at full load (Kohler, 45 gal tank)
Weight: 1,461 lb without fuel; tongue weight 203 lb
Dimensions: 7 ft 0 in L x 4 ft 9 in W x 8 ft 6 in H stowed
Mast height: 23 ft 5 in extended; 359 degrees non-continuous rotation
Towing speed: 60 mph max; ST175/80D13 tires
Max wind speed: 62 mph

Daily care

Check engine oil, coolant level and the air filter daily before starting. Drain the fuel filter/water separator monthly. Keep tires at 35 psi cold and lug nuts at 80 ft-lb, and recheck lug nuts after the first 10 miles of towing. Fully lower and lock the mast before towing; the maximum towing speed is 60 mph. If the machine has the auto-start feature, set the toggle to OFF before any maintenance.
